Acoustic Rubber Underlay 5mm By 10m

Acoustic Rubber Underlay – RFC700

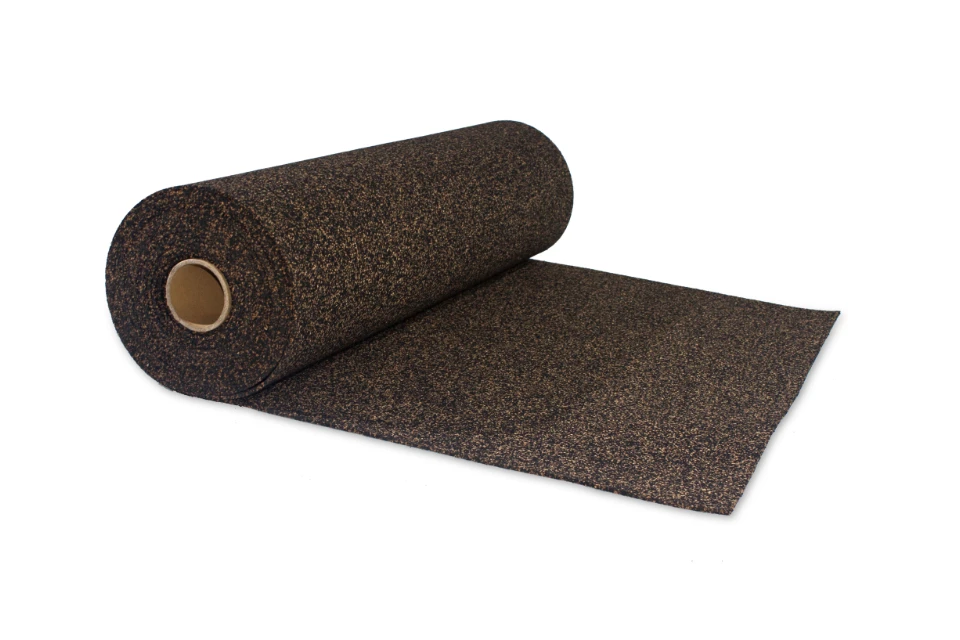

Size 5mm x 1m x 10m

1 roll will cover 10 sqm.

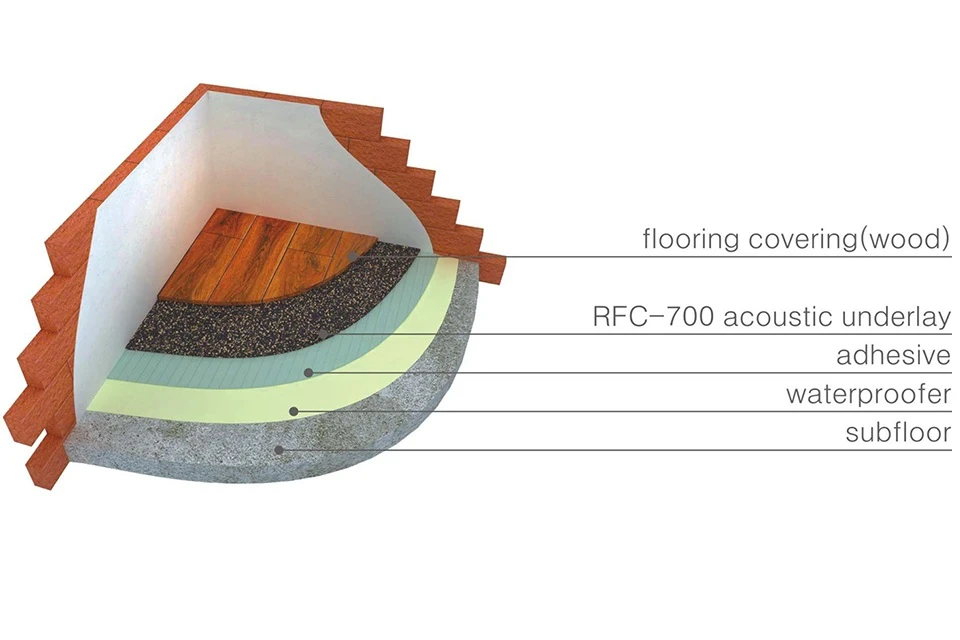

Suitable for glue down or floating fitting

For glue down method underlay should be glued from both sides:

• Underlay to the subfloor
• Floor to the underlay



Density (approx)	700 kg/m³
Length	10m ± 10cm
Width	1m ± 5mm
Thickness	5 ± 0.3mm
Hardness (Shore A) (approx)	40~50 A
Weather Resistance (approx)	-25 ~ 80℃
Thermal  Conductivity	0.065 W/(m·K) (ASTM C 518-10)
Soundproof test result IIC ASTM E492-09 ASTM E989-06	48
Soundproof  test result ISO ISO 140-8:1997 ISO 717-2:1996	Ln,r,w  = 50dB △Lw  = 18dB CI,r = 0dB CI ,△= -10dB

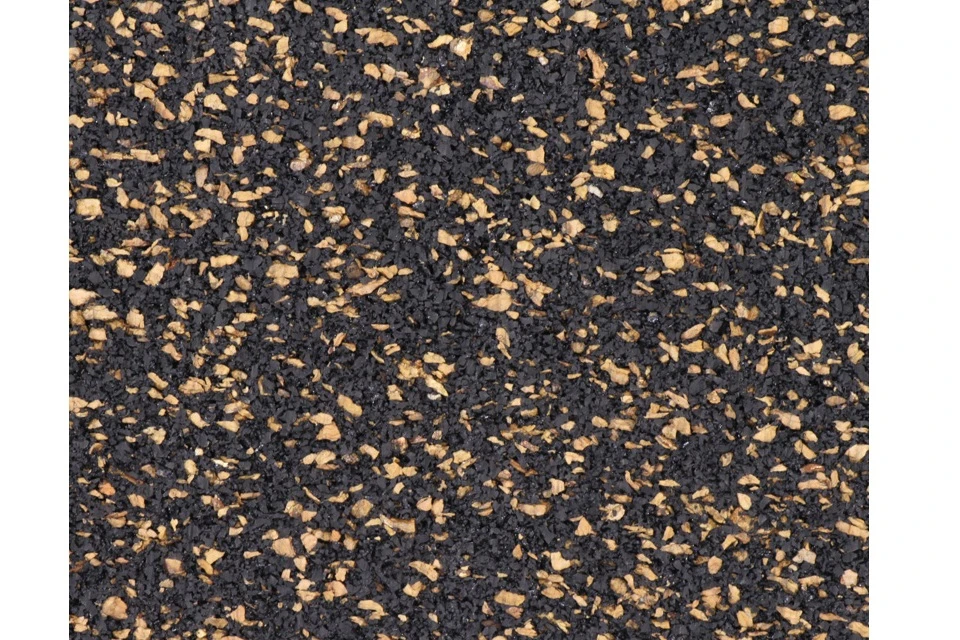

Material Composition	Recycled  rubber & cork
